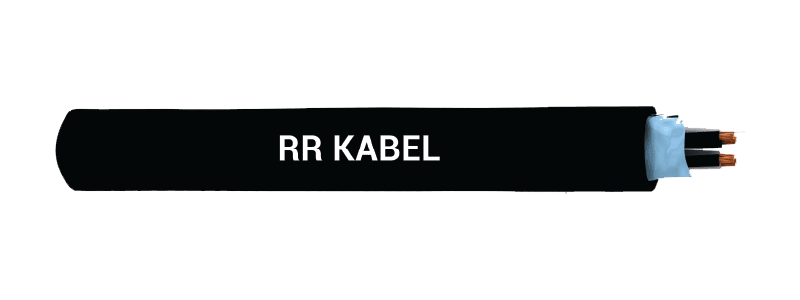

RE-2X(St)Y - Single & Multi-Pair

Standard

Adapted to EN 50288-7

Cable Construction

Conductor: Annealed copper wires according to BS EN 60228

Insulation: Crosslinked polyethylene XLPE

Pairs: Twisted

Identification Pairs: Black & white, continuously numbered on white core (1, 2, 3…) for multi-element

Collective Screen: Aluminium / PETP tape over tinned copper drain wire

Cable Sheath: Polyvinyl chloride PVC (Also available in halogen free construction on request.)

Colour: Black. Blue for intrinsically safe system

Technical Data

Flame Propagation: EN 60332-1-2

Operating Temperature Range: -30°C to +90°C

Bending Radius: 7.5 x cable diameter

Operating Voltage: 500V *Also available in 300V variant on request.

Marking: RR KABEL RE-2X(St)Y nxmxa 500V EN50288-7 CE + 0001m

n: No. of pairs

m: Pairs

a: Cross sectional area

Electrical Properties

Conductor Cross Section (Sq.mm)	Class of Conductor	No. of Strands/ Max. Strand Diameter (mm)	Max. DC Conductor Resistance* at 20°C (Ω/km)	Max. L/R Ratio (µH/Ω)	Min. Insulation Resistance (GΩ x cm)	Max. Mutual Capacitance (nF/km)	Max. Inductance (mH/km)	Test Voltage Vrms (Core-Core)	Test Voltage Vrms (Core-Screen)
0.5	2	7/0.3	36.0	25	5000	150	1	2000	2000
0.5	5	16/0.2	39.0	25	5000	150	1	2000	2000
0.75	2	7/0.37	24.5	25	5000	150	1	2000	2000
0.75	5	24/0.2	26.0	25	5000	150	1	2000	2000
1	2	7/0.43	18.1	25	5000	150	1	2000	2000
1	5	32/0.2	19.5	25	5000	150	1	2000	2000
1.5	2	7/0.53	12.1	40	5000	150	1	2000	2000
2.5	2	7/0.67	7.41	60	5000	150	1	2000	2000

*For multi-pair maximum resistance shall be increased by 2%.

Cable Design Parameters

	Part Number	No. of Pairs and Nom. Cross Sectional Area (Sq. mm)	Min. Insulation Thickness (mm)	Nominal Sheath Thickness (mm)	Approx. Cable Diameter (mm)	Approx. Cable Weight (kg/km)
Class 5 Conductor	070350121050	1 x 2 x 0.5	0.44	1.0	6.4	45.1
	070350221050	2 x 2 x 0.5	0.44	1.0	7.7	67.9
	070350321050	3 x 2 x 0.5	0.44	1.1	9.0	91.3
	070350421050	4 x 2 x 0.5	0.44	1.1	10.1	113.8
	070350521050	5 x 2 x 0.5	0.44	1.2	11.1	136.0
	070350821050	8 x 2 x 0.5	0.44	1.3	13.6	200.1
	070351021050	10 x 2 x 0.5	0.44	1.3	15.0	242.3
	070351221050	12 x 2 x 0.5	0.44	1.4	16.2	283.9
	070351621050	16 x 2 x 0.5	0.44	1.4	18.4	365.3
	070352021050	20 x 2 x 0.5	0.44	1.5	20.4	446.6
	070352421050	24 x 2 x 0.5	0.44	1.6	22.2	527.1
	070350121075	1 x 2 x 0.75	0.44	1.0	6.8	53.1
	070350221075	2 x 2 x 0.75	0.44	1.1	8.3	82.2
	070350321075	3 x 2 x 0.75	0.44	1.1	9.7	112.0
	070350421075	4 x 2 x 0.75	0.44	1.2	10.9	141.3
	070350521075	5 x 2 x 0.75	0.44	1.2	12.0	169.8
	070350821075	8 x 2 x 0.75	0.44	1.3	14.7	253.1
	070351021075	10 x 2 x 0.75	0.44	1.4	16.2	308.6
	070351221075	12 x 2 x 0.75	0.44	1.4	17.6	362.6
	070351621075	16 x 2 x 0.75	0.44	1.5	20.0	469.5
	070352021075	20 x 2 x 0.75	0.44	1.6	22.2	576.7
	070352421075	24 x 2 x 0.75	0.44	1.6	24.1	681.7
	070350120001	1 x 2 x 1	0.44	1.0	7.1	60.1
	070350220001	2 x 2 x 1	0.44	1.1	8.7	95.5
	070350320001	3 x 2 x 1	0.44	1.1	10.2	131.2
	070350420001	4 x 2 x 1	0.44	1.2	11.5	166.3
	070350520001	5 x 2 x 1	0.44	1.2	12.6	200.6
	070350820001	8 x 2 x 1	0.44	1.3	15.5	302.0
	070351020001	10 x 2 x 1	0.44	1.4	17.1	369.2
	070351220001	12 x 2 x 1	0.44	1.4	18.6	434.7
	070351620001	16 x 2 x 1	0.44	1.5	21.2	565.4
	070352020001	20 x 2 x 1	0.44	1.6	23.5	697.1
	070352420001	24 x 2 x 1	0.44	1.7	25.5	825.0

	Part Number	No. of Pairs and Nom. Cross Sectional Area (Sq. mm)	Min. Insulation Thickness (mm)	Nominal Sheath Thickness (mm)	Approx. Cable Diameter (mm)	Approx. Cable Weight (kg/km)
Class 2 Conductor	070320121050	1 x 2 x 0.5	0.44	1.0	6.4	44.9
	070320221050	2 x 2 x 0.5	0.44	1.0	7.7	67.6
	070320321050	3 x 2 x 0.5	0.44	1.1	9.0	90.8
	070320421050	4 x 2 x 0.5	0.44	1.1	10.1	113.2
	070320521050	5 x 2 x 0.5	0.44	1.2	11.1	135.3
	070320821050	8 x 2 x 0.5	0.44	1.3	13.6	199
	070321021050	10 x 2 x 0.5	0.44	1.3	15.0	240.9
	070321221050	12 x 2 x 0.5	0.44	1.4	16.2	282.3
	070321621050	16 x 2 x 0.5	0.44	1.4	18.4	363.2
	070322021050	20 x 2 x 0.5	0.44	1.5	20.4	443.9
	070322421050	24 x 2 x 0.5	0.44	1.6	22.2	523.9
	070320121075	1 x 2 x 0.75	0.44	1.0	6.8	53
	070320221075	2 x 2 x 0.75	0.44	1.1	8.3	82.2
	070320321075	3 x 2 x 0.75	0.44	1.1	9.7	112.4
	070320421075	4 x 2 x 0.75	0.44	1.2	10.9	141.2
	070320521075	5 x 2 x 0.75	0.44	1.2	12.0	169.7
	070320821075	8 x 2 x 0.75	0.44	1.3	14.7	253
	070321021075	10 x 2 x 0.75	0.44	1.4	16.3	308.4
	070321221075	12 x 2 x 0.75	0.44	1.4	17.6	362.4
	070321621075	16 x 2 x 0.75	0.44	1.5	20.1	469.2
	070322021075	20 x 2 x 0.75	0.44	1.6	22.2	576.3
	070322421075	24 x 2 x 0.75	0.44	1.6	24.2	681.2
	070320120001	1 x 2 x 1	0.44	1.0	7.2	61.1
	070320220001	2 x 2 x 1	0.44	1.1	8.8	97.2
	070320320001	3 x 2 x 1	0.44	1.1	10.4	134.2
	070320420001	4 x 2 x 1	0.44	1.2	11.7	170.1
	070320520001	5 x 2 x 1	0.44	1.2	12.9	205.2
	070320820001	8 x 2 x 1	0.44	1.3	15.8	308.9
	070321020001	10 x 2 x 1	0.44	1.4	17.4	377.7
	070321220001	12 x 2 x 1	0.44	1.5	19.0	445.5
	070321620001	16 x 2 x 1	0.44	1.6	21.6	579.4
	070322020001	20 x 2 x 1	0.44	1.6	23.9	712.9
	070322420001	24 x 2 x 1	0.44	1.7	26.0	845
	070320121105	1 x 2 x 1.5	0.44	1.0	7.9	76.8
	070320221105	2 x 2 x 1.5	0.44	1.1	9.7	126.3
	070320321105	3 x 2 x 1.5	0.44	1.2	11.5	176.3
	070320421105	4 x 2 x 1.5	0.44	1.2	13.0	225.7
	070320521105	5 x 2 x 1.5	0.44	1.3	14.3	274.3
	070320821105	8 x 2 x 1.5	0.44	1.4	17.7	417
	070321021105	10 x 2 x 1.5	0.44	1.5	19.5	512.4
	070321221105	12 x 2 x 1.5	0.44	1.5	21.2	605.6
	070321621105	16 x 2 x 1.5	0.44	1.6	24.2	791
	070322021105	20 x 2 x 1.5	0.44	1.7	26.8	978.1
	070322421105	24 x 2 x 1.5	0.44	1.8	29.2	1162
	070320121205	1 x 2 x 2.5	0.53	1.1	9.3	106.4
	070320221205	2 x 2 x 2.5	0.53	1.2	11.5	180.6
	070320321205	3 x 2 x 2.5	0.53	1.3	13.6	256.2
	070320421205	4 x 2 x 2.5	0.53	1.3	15.5	330.7
	070320521205	5 x 2 x 2.5	0.53	1.4	17.1	404.3
	070320821205	8 x 2 x 2.5	0.53	1.5	21.1	621.6
	070321021205	10 x 2 x 2.5	0.53	1.6	23.4	766.7
	070321221205	12 x 2 x 2.5	0.53	1.7	25.5	909.9
	070321621205	16 x 2 x 2.5	0.53	1.8	29.1	1193.1
	070322021205	20 x 2 x 2.5	0.53	1.9	32.3	1479.8
	070322421205	24 x 2 x 2.5	0.53	2.1	35.2	1762.0
