JZ-35400 CP

Application

These cables are used as data and control cable in machinery. The high level of screening ensures a high degree of interference protection. The PVC-inner sheaths of these cables raise the mechanical strength. Such cables can also be used for outdoor applications for the permitted temperature range.

Technical Data

Standard: Adapted to EN 50525-2-51

Nominal Voltage: U_o / U 300 / 500 V

Insulation Resistance: Min. 20 GΩ x cm

Temperature Range: Flexing -5°C to +70°C. Fixed installation -30°C to +70°C

Minimum Bending Radius: Flexing 20 x cable ø. Fixed installation 6 x cable ø

Test Voltage: Core/core: 4000V. Core/screen: 2000V

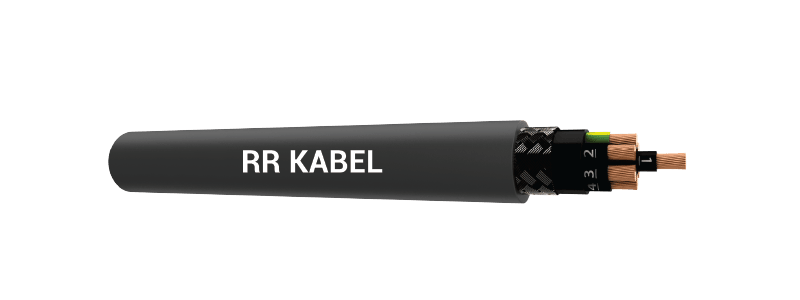

Cable Construction

Bare copper, fine wire conductors according to EN 60228 cl. 5.

Core insulation of PVC TI2, EN 50363-3.

Black core with continuous white numbering to DIN VDE 0293

Green/yellow earth core in outer layer (3 cores and above).

Cores stranded in layers with optimal lay-length.

Special PVC inner jacket.

Tinned copper braided screen.

Special polyurethane outer sheath (PUR).

Sheath colour: Grey (RAL 7001).

Properties

Extensively oil resistant.

Abrasion and notch resistant.

Low adhesive surface.

Resistant to hydrolysis and microbes.

UV resistant to ASTM G 154.

The screening density assures disturbance-free transmission of all signals and impulses.

To optimize the EMC features we recommend a large round contact of copper braiding on both ends.
